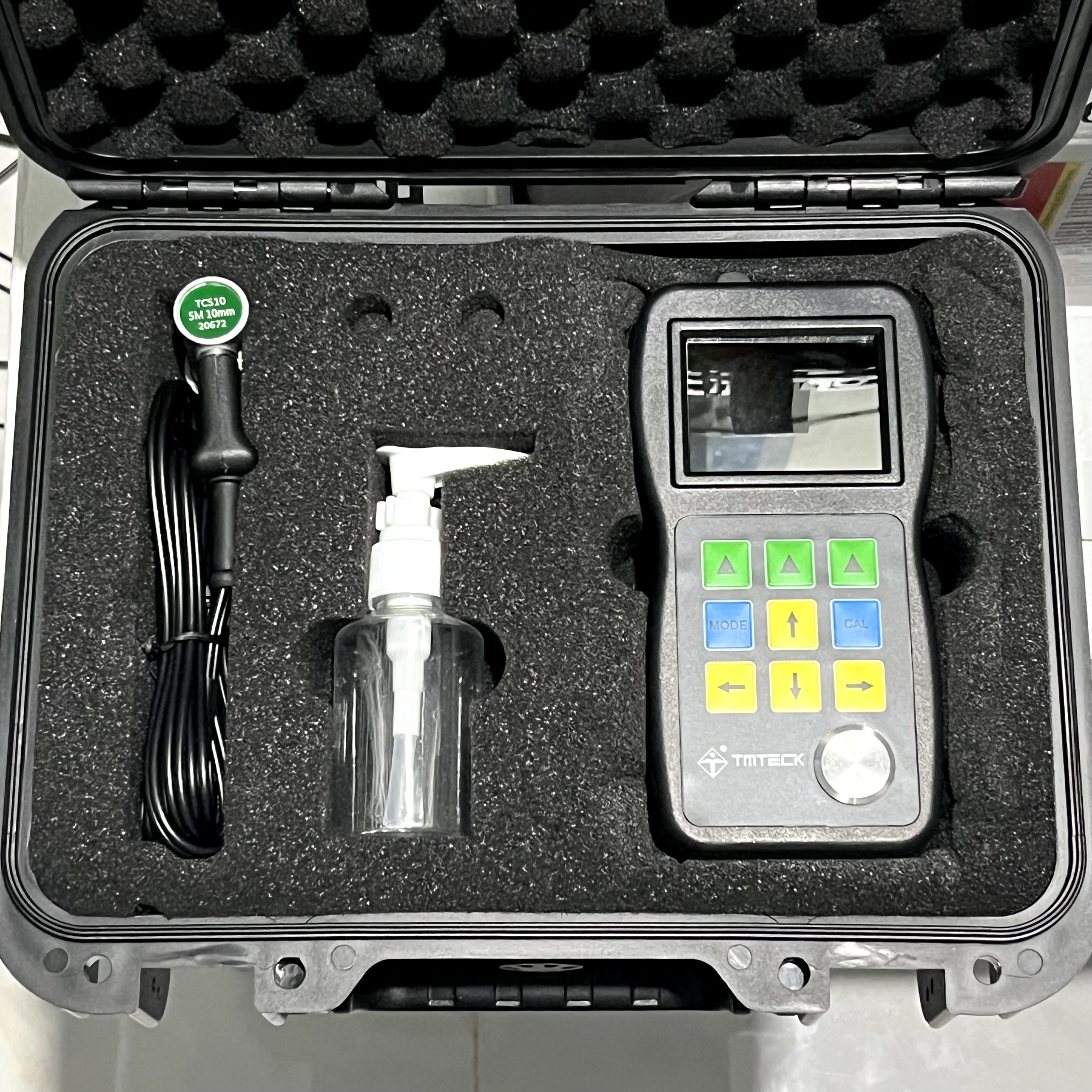

Ultrasonic Thickness Gauge Model: TM282DL

TM282 Series Color Screen with A/B-Scan Ultrasonic Thickness Gauge Professional in Solving Various Difficult Thickness Measurement

SPECIFICATION

Parameter	Spesifikasi
Display Type	2.4'' color OLED, 320×240 pixels, contrast 10,000:1
Operating Principle	Pulse echo with dual elemet transducers
Measuring Range	0.50mm to 508mm(0.02'' to 20.00''), depending on material, probe and surface condition
Measuring Resolution	Selectable 0.01mm, 0.1mm(selectable 0.001'', 0.01'')
Units	Inch or Millimeter
Rectify Mode	RF+, RF-, HALF+, HALF-, FULL
Display Mode	Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction	Automatic
Update Rate	Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range	500 to 9999m/s(0.0197 to 0.3939 in/μs)
Languages	English, French, German, Japanese,Chinese
Alarm Settings	Minimum and Maximum alarms. Range of 0.25mm to 508mm (0.010'' to 20.00''). Dynamic waveform color change on alarm
Power Requirements	2 AA size batteries
Operating Time	Approximately 40 hours
Instrument Shut-off	Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature	-10℃ to +50℃(+10°F to +12°F )
Size	156mm × 75mm × 38mm (H × W × D)
Weight	270g including batteries

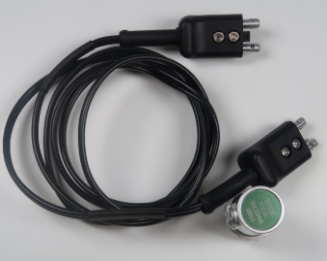

TM282 Probe/Transducer Specifications	TM510 Type: TM282D/DL Standard
Frequency	5MHz
Contact Diameter	13.5mm
Measurement Range	1.2 to 200.0mm
Temperature Range	-10 to 70℃
