Ultrasonic Thickness Gauge 39DL Plus

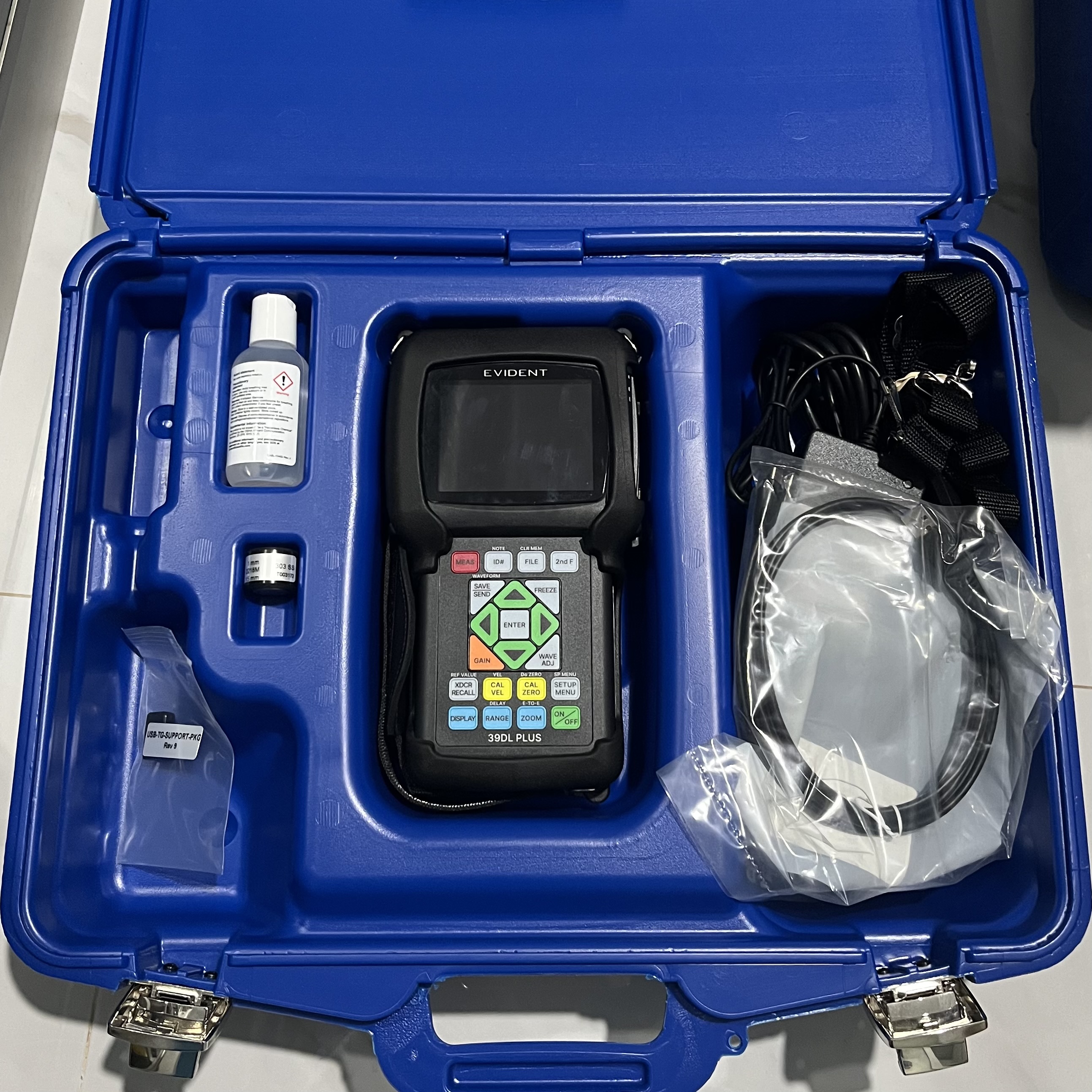

The 39DL PLUS™ gauge works as a precision or corrosion thickness gauge for demanding applications. Integrated Wi-Fi®, Bluetooth®, USB, RS-232, and a removable microSD card. Scan for minimal thickness areas at a 2 times faster display update rate. Tackle multiple thickness applications with full line of dual and single element transducers.

SPECIFICATION

Parameter	Spesifikasi
Dual element transducer measurement mode	Time interval from a precision delay after the excitation pulse to the first echo
THRU-COAT™ measurement	Measurement of true metal and coating thicknesses with a single back-wall echo (with D7906-SM and D7908 transducers)
Thru-Paint Echo-to-Echo	Time interval between two successive back-wall echoes to eliminate paint or coating thickness
Single element transducer measurement modes	Mode 1: Time interval between the excitation pulse and the first back-wall echo Mode 2: Time interval between the delay line echo and the first back-wall echo (with delay or immersion transducers) Mode 3: Time interval between successive back-wall echoes following the first interface echo after the excitation pulse (with delay line or immersion transducers) Oxide: optional Multilayer mode: optional
Thickness range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material, transducer surface conditions, temperature, and selected configuration
Material velocity range	0.508 mm/μs to 13.998 mm/μs (0.02 in./μs to 0.551 in./μs)
Resolution (selectable)	Low: 0.1 mm (0.01 in.) Standard: 0.01 mm (0.001 in.) High Resolution (optional): 0.001 mm (0.0001 in.)
Transducer frequency range	Standard: 2.0 MHz to 30 MHz (-3 dB) High Penetration (optional): 0.50 MHz to 30 MHz (-3 dB)
Operating temperature range	-10 °C to 50 °C (14 °F to 122 °F)
Keypad	Sealed, color-coded keypad with tactile and audible feedback
Case	Impact-resistant and water-resistant, gasketed case with sealed connectors. Designed for IP67.
Dimensions (W x H x D)	Overall: 125 mm × 211 mm × 46 mm (4.92 in. × 8.31 in. × 1.82 in.)
Weight	0.83 kg (1.83 lb)
Power supply	AC/DC adapter, 24 V; lithium-ion battery 23.760 Wh; or 4 AA auxiliary batteries
Battery life, lithium-ion	Operating time: typically 8 hours Fast charge: 2 to 3 hours
Standards	Designed for EN15317
Explosive Atmosphere	Testing using MIL-STD-810H, Section 511.7, Procedure I
Color transflective VGA display	Liquid crystal display, display area 56.16 mm x 74.88 mm (2.2 in. x 2.95 in.)
Rectification	Full wave, RF, half-wave positive, or half-wave negative
USB	USB 3.0
RS-232	Yes
Memory card	Maximum capacity: 32 GB external microSD memory card
Video output	VGA output standard
Wi-Fi®	Integrated
Bluetooth®	Integrated
Data logger	The 39DL PLUS identifies, stores, recalls, clears, and transmits thickness readings, waveform images, and gauge configuration information through the standard RS-232 serial port or USB port
Capacity	792,832 thickness measurements or 20,000 waveforms with thickness measurements
File names, IDs, and comments	32-character file names and 20-character alphanumeric location codes with four comments per location
File structures	Nine standard or custom application-specific file structures
Reports	On-gauge reporting of summary with statistics, Min./Max. with locations, Min. review, file comparison, and alarm report
